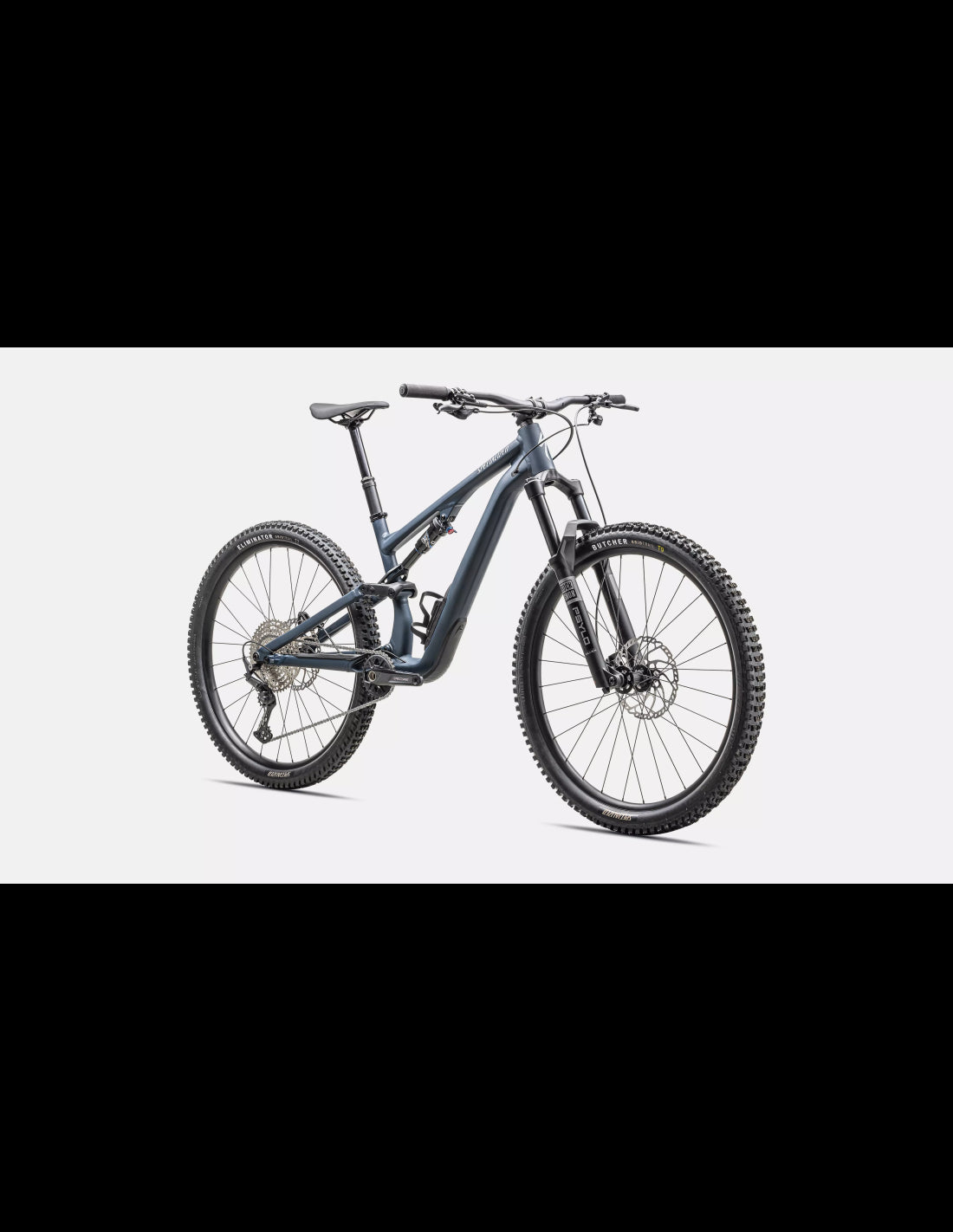

Stumpjumper 15 Alloy (2025)

• New M5 alloy frame with integrated SWAT™ Door compartment
• X-Fusion 02 Pro RL shock developed with the Ride Dynamics team, with adjustable rebound and lockout
• RockShox Psylo Silver fork with Motion Control cartridges
• Reliable Shimano MT-420 four-piston brakes
• Shimano Deore 12-speed drivetrain

FRAME

• Frame: M5 Alloy chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm of travel
• Seat Collar: Alloy, 38.6mm
• SWAT Components: SWAT internal downtube storage

SUSPENSION

• Rear Shock: X-Fusion 02 Pro RL, Ride Dynamics Trail Tune, rebound adjust, lockout S1:210x52.5mm, S2-S6:210x55mm
• Fork: RockShox, Psylo Silver, Motion Control Damper, 15x110 axle, 44mm offset, S1:140mm of travel, S2-S6:150mm of travel

BRAKES

• Front Brake: Shimano, BR-MT420, 4-piston caliper, hydraulic disc, 203mm
• Rear Brake: Shimano, BR-MT420, 4-piston caliper, hydraulic disc, S1-S2: 180mm, S3-S6: 203mm

DRIVETRAIN

• Shifter: Shimano Deore, M6100, 12spd
• Rear Derailleur: Shimano Deore, M6100, 12spd, Shadow Plus
• Cassette: Shimano Deore, M6100, 12spd w/Hyperglide+, 10-51t
• Chain: Shimano Deore, M6100, 12-speed
• Crankset: Shimano Deore, M6120, 30T ring, 55mm chainline, S1-S3:165mm, S4-S6: 170mm

WHEELS

• Rims: Specialized Alloy, Tubeless Ready, 29mm internal width, 28h, Front: 29, Rear: S1-S2: 27.5, S3-S6: 29
• Front Hub: Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
• Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 28h
• Front Tire: Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
• Rear Tire: Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, S1-S2: 27.5x2.3, S3-S6: 29x2.3"
• Inner Tubes: Standard, Presta valve

WHEELS & TIRES

• Spokes: Stainless, 14g

COCKPIT

• Stem: Alloy Trail Stem, 35mm bar bore
• Grips: Specialized Trail Grips
• Saddle: Bridge, Steel rails, S1-S2: 155mm, S3-S6: 143mm
• Seatpost: TranzX Dropper, remote SLR LE lever, 34.9, S1: 125mm, S2: 150mm, S3: 170mm, S4-S6: 200mm
• Handlebar: Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S1-S2: 780 width, 20mm rise; S3-S4: 800 width, 30mm rise; S5-S6: 800 width, 40mm rise

WEIGHT

• Weight: 16.57 kg (36 lb, 8.5 oz)
• Measured Size: S4
