Details

700c 9-11s clincher wheel rear
Quick-release axle

Specification

RS100 - Clincher - Rim Brake - Rear Wheel

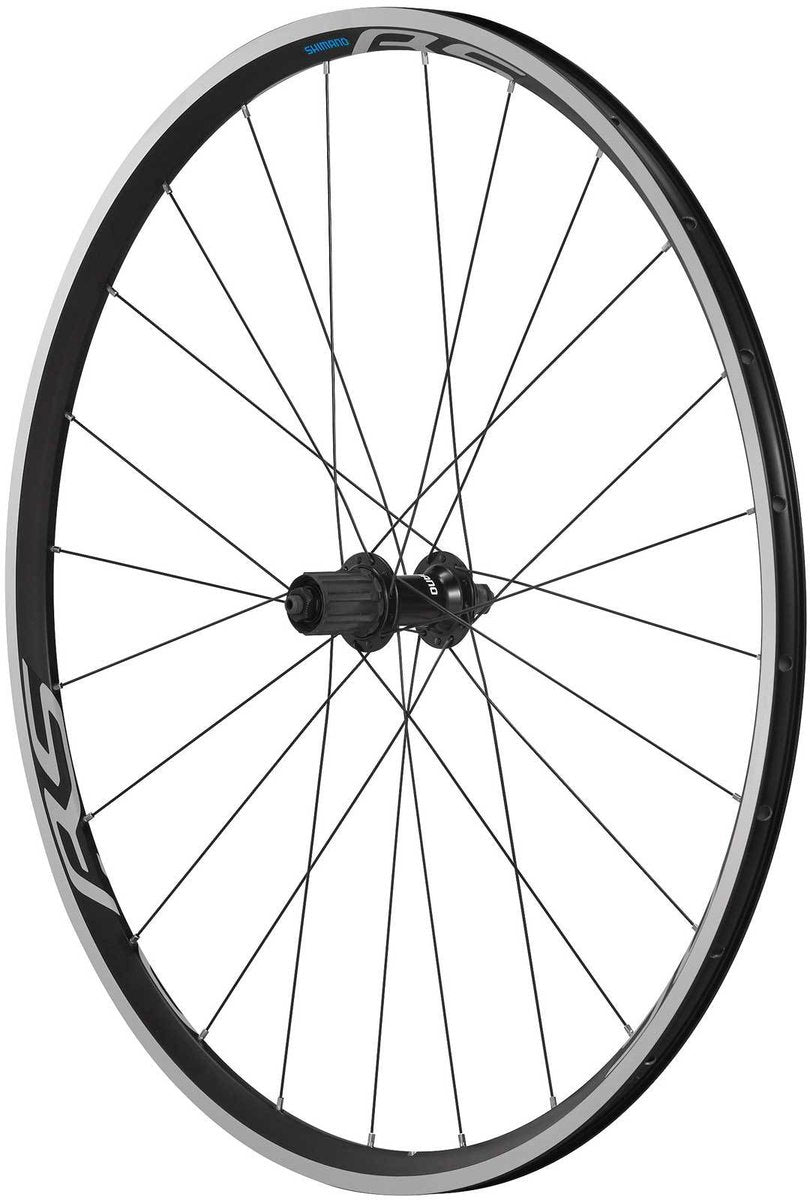

RS100 Clincher Rear Wheel

MODEL NO
WH-RS100-CL-R
SERIES
TIAGRA 4700 Series
Color Black
Average weight
1105
Remarks
* The adapter is needed to use 10-speed cassette sprocket
Brake type Rim brake
Axle fixing method
Quick release
O.L.D. (mm) 130
Rear speeds 10*/11
Axle_Length (mm)
141
Axle_Diameter (mm)
10
Axle_Fixing method
Quick release
Quick release skewer length (mm)_163
✔
Quick release skewer length (mm)_168
✔
Compatible spoke protector
CP-WH24 CP-FH53 (34T)
Front/Rear Rear
Quick release nut_Color
Black
Reflector_AS
CATEYE RR-550-WUA SW
Reflector_DIN
CATEYE RR-317-WUA SW
Reflector_JIS/CPSC
CATEYE RR-550-WUW SW
Rim_Height (mm)
24
Rim_OFFSET RIM
✔
Rim_Requires rim tape
18-622
Rim_Rim joint Sleeved
Rim_Width (mm)
23.2
Seal_FREEHUB body
Contact
Seal_Hub Contact
Spokes_Number
24
Tire_Recommended size
23-622 - 32-622
Tire_Type Clincher
Wheel Size 622 x 17C
Color_1 Hub shell
Black
Color_1 Quick release
Black
HG spline (ROAD 11-speed)
✔
Model name WH-RS100-CL
Engagement type
Pawl ratchet
Rim_Internal width (mm)
23.2
Spokes_Diameter (mm)
2
Specification R
