⯁ All specifications are subject to change without notice.

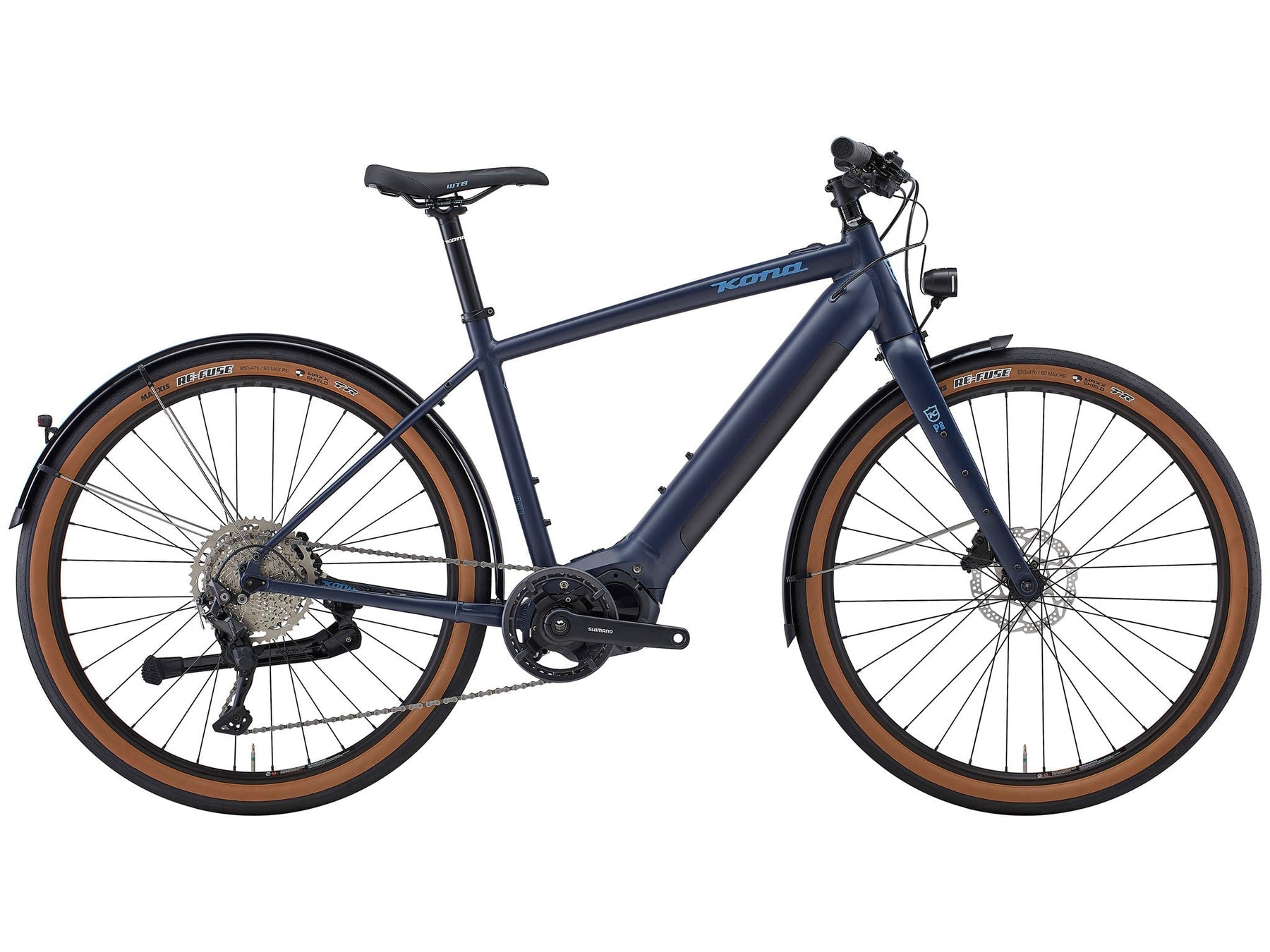

Commuters have been flocking to the Dew-E DL for its stylish design and because it’s a blast to ride. An aluminum frame features a Kona Rove Verso Full Carbon Flat Mount Disc fork. A 10-speed drivetrain works in perfect harmony with the low-profile Shimano motor and integrated battery. Sturdy aluminum fenders and lights keep you dry and visible throughout your ride. Powerful hydraulic disc brakes and 160mm rotors stop on a dime, even in wet conditions and puncture-resistant 650x47c tires keep the road rolling by smoothly whether you’re cruising on pavement, or a dirt path. This is the electric commuter you’ve been searching for!
SPECS & GEOMETRY
| Frame Material | Kona 6061 Aluminum Butted |
| Sizes | S, M, L, XL |
| Rear Shock | n/a |
| Fork | Kona Rove Verso Full Carbon Flat Mount Disc |
| Crankarms | Shimano E6100 |
| Chainrings | 38t |
| B/B | n/a |
| Pedals | n/a |
| Chain | Shimano HG54 |
| Cassette | Shimano Deore 11-46t 10spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | Shimano Deore |
| Shifters | Shimano Deore |
| Brake Calipers | Shimano Hydraulic |
| Front Brake Rotor | Shimano RT54 160mm (centerlock) |
| Rear Brake Rotor | Shimano RT54 160mm (centerlock) |
| Brake Levers | Shimano MT201 Hydraulic |
| Headset | FSA No.57BP |
| Handlebar | Kona Aluminum Riser |
| Stem | Kona Control |
| Seatpost | Kona Commuter 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip |
| Saddle | WTB Volt |
| Front Hub | Shimano Tiagra 100x12mm |
| Rear Hub | Shimano Tiagra 142x12mm |
| Spokes | Stainless 14g |
| Rims | WTB ST i23 TCS 2.0 |
| Front Tire | WTB Horizon TCS w/ Puncture Protection 650x47c |
| Rear Tire | WTB Horizon TCS w/ Puncture Protection 650x47c |
| DriveUnit | Shimano E6100 20MPH |
| Battery | Shimano 504Wh |
| Display | Shimano SC-E7000 Display |
| Charger | Shimano STEPS 2A |
| BatteryLock | n/a |
| Paint Color | Matte Midnight w/ Blue-Grey Decals |
| Extras | Fenders, Busch & Müller Front & Rear Light, Kickstand |
| Size | S | M | L | XL | |
| 1 | ST Length | 420 | 470 | 520 | 580 |
| 2 | TT Length | 551 | 596 | 635 | 678 |
| 3 | Reach | 404 | 430 | 446 | 471 |
| 4 | Stack | 548 | 579 | 617 | 636 |
| 5 | Standover | 700 | 741 | 786 | 830 |
| 6 | HT Angle | 70.0 | 70.0 | 70.0 | 70.0 |
| 7 | HT Length | 135 | 168 | 208 | 228 |
| 8 | ST Angle | 75.0 | 74.0 | 73.0 | 72.0 |
| 9 | CS Length | 450 | 450 | 450 | 450 |
| 10 | BB Drop | 60 | 60 | 60 | 60 |
| 11 | BB Height | 282 | 282 | 282 | 282 |
| 12 | Wheelbase | 1081 | 1118 | 1148 | 1180 |
| 13 | Front Center | 638 | 675 | 705 | 736 |
| 14 | Fork Length | 400 | 400 | 400 | 400 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 |
